Which Milwaukee M12 Battery Should You Buy? (CP vs XC, 2Ah to 6Ah)

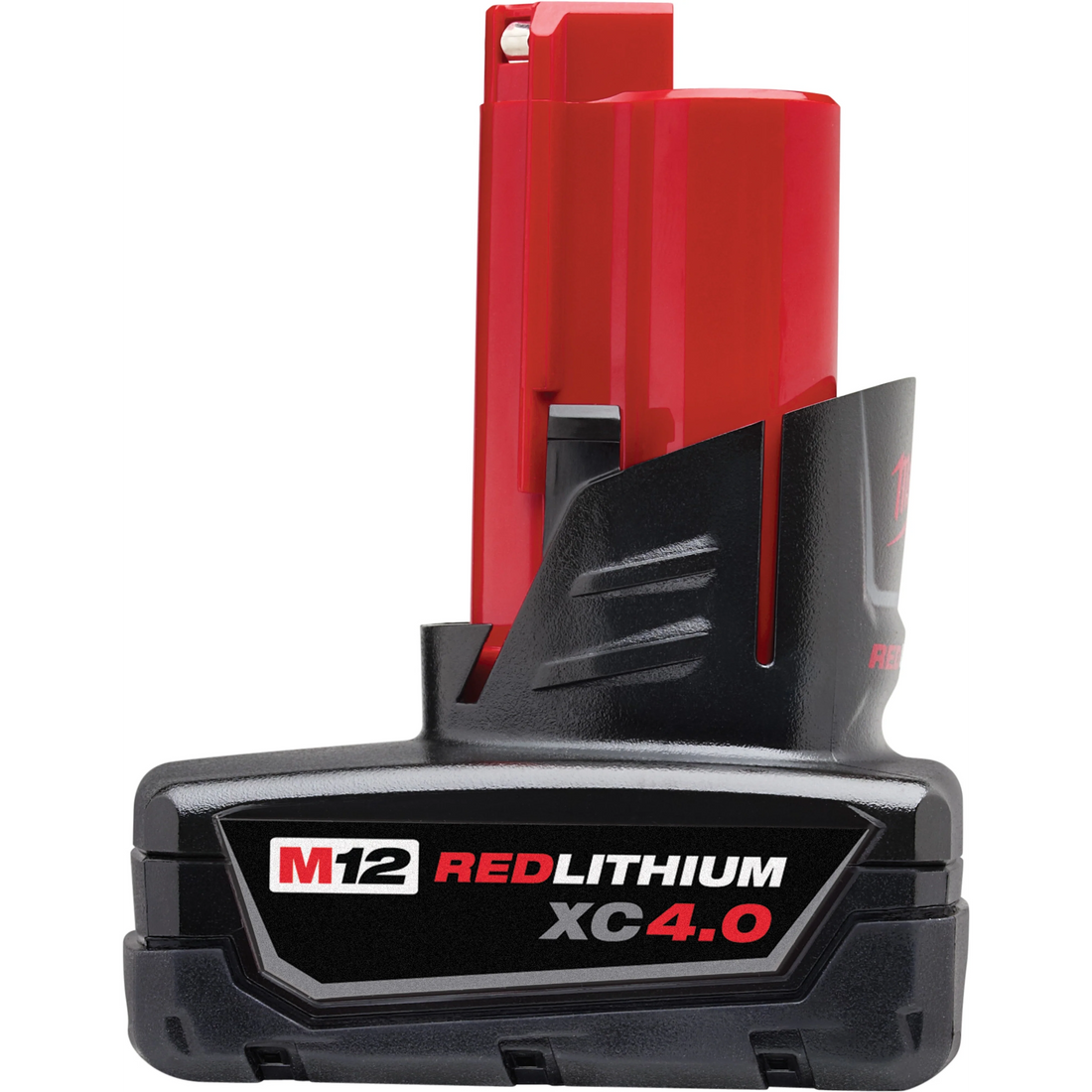

For most Milwaukee M12 users, the answer is simple: buy the XC4.0 (48-11-2440). It fits every M12 tool, delivers up to 2× the runtime of the CP2.0, and doesn't outweigh the tool in your hand. Step up to the XC6.0 only if you're running a sustained-draw tool — hammer drill, M12 vacuum, heated jacket — or plan to use the battery as a USB power bank on the job. The compact CP packs (1.5Ah, 2.0Ah) earn their spot only when weight or physical bulk is the real problem: overhead work, tight clearances, ultralight carry.

The M12 Battery Lineup at a Glance

All five packs run on the same 12V M12 platform with the same slide-on connector. We carry the XC4.0 and XC6.0 directly. For the CP1.5, CP2.0, or XC3.0, head to our Milwaukee battery collection.

CP vs. XC — What the Letters Actually Mean

CP = Compact Pack. Smaller cell stack, lighter, sits flush against the tool body. On a ratchet or oscillating tool, it disappears into the grip — no overhang, no balance shift.

XC = Extended Capacity. A taller cell stack that delivers more amp-hours but adds weight and extends visibly below the handle on compact-grip tools. On a full-size M12 drill, you won't notice. On the M12 ratchet or soldering iron, you will.

The weight difference is concrete. The CP2.0 weighs 0.4 lbs. The XC6.0 weighs 0.88 lb. That delta matters when you're holding the tool in a tight space for an extended period, or when the pack is adding torque the wrong direction — see how pack weight affects M12 impact wrenches for how pack weight factors into M12 ratchet use specifically.

When CP Makes Sense

• Overhead installs where every ounce you're lifting adds up
• Tight clearance work where the pack length would clip a joist, cabinet, or panel
• The M12 soldering iron, penlight, or other low-draw tools where runtime isn't the limiting factor
• A second backup pack you want compact and cheap to carry

When XC Makes Sense

• Drilling, driving, or running a vacuum where you're stationary and runtime is what you care about
• Sustained-draw tools: hammer drill, M12 vacuum, heated jacket
• Any use case where the battery will also charge devices via M12 accessories

XC4.0 vs. XC6.0 — Is the 6Ah Worth It?

Both are XC form factor — same physical height, same connector, broadly similar balance on most tools. The difference is capacity, weight, and runtime.

A few things worth knowing about those runtime claims: both are measured against the CP2.0, not head-to-head, and Milwaukee does not publish a discrete figure comparing the XC6.0 directly to the XC4.0. On a tool firing in short bursts — impact driver, ratchet, oscillating multi-tool — you won't feel the difference between 4Ah and 6Ah in a single session. On a hammer drill biting through masonry, or a vacuum running continuously on a demo cleanup, you will.

The weight delta matters too. The XC4.0 weighs 0.88 lbs versus the XC6.0 at 0.88 lb. For compact M12 tools you're moving constantly, that difference is noticeable.

The call: XC4.0 for tools, XC6.0 for tools *plus* device charging. If you're purely running compact M12 tools and swapping packs when they die, the XC4.0 is the smarter buy — better balance, lighter, meaningfully cheaper. The XC6.0 justifies the premium when you're also running the battery as a power source for lights, a heated jacket, or your phone.

Your M12 Battery Does More Than Run Tools

This is where the XC6.0 argument gets stronger.

Milwaukee's M12 accessories turn your battery into a pocket power station. The M12 TOP-OFF Power Supply & Charger (M12 TOP-OFF charger and power supply) outputs USB-C and USB-A charging — 15W over USB-C — and tops off the M12 battery itself while it charges your devices. The M12 USB Charger / Heated Jacket Adapter (M12 USB charger for heated jackets) adds a USB-A port plus a 12V DC port for Milwaukee heated jacket compatibility.

More Ah means more device charges before the pack needs a reload. If you're spending a full day on a job site with no outlet access, the XC6.0 will keep your phone alive longer between top-offs. That's a real, daily-use advantage — not a spec on paper.

Storage and Charging — Keep Your M12 Fleet Ready

Lithium cells don't like being stored dead. Charge M12 packs to roughly 50–80% before storing them for more than a few weeks, and keep them out of hot vehicles. A dead pack left sitting loses capacity faster than one with a partial charge.

The practical upgrade: get packs off the bench. The 4-slot metal battery wall mount holds four M12 batteries at an angle that's easy to grab and lets you check charge state at a glance. Pair it with a charger wall-mount bracket to get the charger off the workbench too. Both mount in minutes and free up more surface than you'd expect.

For the full rundown on lithium battery storage and maintenance: battery storage guide.

M12 Battery FAQ

Do all Milwaukee M12 batteries fit all M12 tools?

Yes. Every M12 battery uses the same 12V slide-on connector and is electrically compatible with every M12 tool — no exceptions. The CP vs. XC decision is about size, weight, and runtime, not fitment. Milwaukee held the same connector across the platform. For how this compares to M18 compatibility: M12 and M18 battery cross-compatibility.

What is the difference between Milwaukee M12 CP and XC batteries?

CP (Compact Pack) is smaller and lighter — it sits flush on every M12 tool without extending below the handle. XC (Extended Capacity) packs more cells for higher Ah and longer runtime, but adds weight and extends visibly on compact-grip tools. The choice is a weight-and-balance trade-off, not an electrical one.

Is a 6Ah M12 battery worth it?

For most compact-tool use, no — the XC4.0 handles better and delivers enough runtime per charge. The XC6.0 earns its price on sustained-runtime tools (hammer drill, vacuum, heated jacket) or when you're pulling device charges off the battery via the M12 TOP-OFF or USB adapter. If you're doing both — running tools and charging your phone off the same pack all day — the XC6.0 is worth the upgrade.

How long does a Milwaukee M12 battery last?

Depends on the tool and the draw. Milwaukee rates the XC4.0 at up to 2X more runtime versus the CP2.0, and the XC6.0 at up to 3X more runtime over that same baseline. High-draw sustained tools (hammer drill, vacuum) drain a pack faster than intermittent-use tools (ratchet, oscillating tool). In general: more Ah, longer runtime on the same task.

Can Milwaukee M12 batteries charge my phone?

Yes, with an accessory. The M12 USB-A adapter for heated jackets adds a USB-A port and a 12V DC jacket port. The M12 TOP-OFF power supply adds USB-C and USB-A charging and tops off the battery itself. A larger pack means more device charges per session — that's the clearest real-world case for the XC6.0.

What does XC mean on Milwaukee batteries?

Extended Capacity. It describes the physical size of the cell stack and the resulting amp-hour rating — not a performance tier or a different chemistry. XC packs are taller and heavier than CP (Compact Pack) packs at the same voltage. More Ah, more weight, different balance on small tools. That's the whole trade-off. If you want more on platform terminology, how M12 and M18 platforms differ breaks down how M12 and M18 are structured. And for M12/M18 charger compatibility specifically: M12 and M18 charger compatibility guide.

For most M12 owners, the XC4.0 is the pack to buy — and the XC6.0 makes sense when sustained runtime or job-site device charging is in the picture. Browse the full M12 battery lineup, including the CP packs we don't stock individually, at our complete Milwaukee M12 collection.
