How to Charge Multiple DeWalt Batteries Without Tripping a Breaker

A standard 15A circuit can handle 3–4 DeWalt chargers safely — *if* those chargers are the only load on that circuit. That "only load" part is where most people go wrong. The math is simple: keep total charger wattage under 1,440W on a 15A circuit, or 1,920W on a 20A circuit (the NEC 80% rule). Regularly charging four or more packs? The DCB104 multiport simultaneous charger handles the load math for you — one device, one circuit, four batteries charging at once.

Why Multiple Chargers Trip the Breaker

The 80% Rule — What Your Circuit Can Actually Handle

Breakers are rated in amps, but the limit most people miss is the *sustained load* ceiling. The National Electrical Code (NEC 210.19(A)) requires that continuous loads — anything running longer than three hours — stay at or below 80% of the breaker's rating. A battery charger qualifies.

The arithmetic:

• 15A circuit: 15A × 120V × 0.80 = 1,440W safe ceiling
• 20A circuit: 20A × 120V × 0.80 = 1,920W safe ceiling

Stack chargers past those limits and you're not just nuisance-tripping — you're running the circuit in a zone that wears out the breaker over time.

Startup Inrush Current — Why Charger #4 Trips the Breaker Instantly

Here's the part the vague advice leaves out. The moment you plug in a charger, the power supply spikes current for a fraction of a second before settling to steady-state draw. That startup inrush can briefly hit 2–5× the normal operating current. Chargers 1, 2, and 3 are humming along at 80% of capacity, everything looks fine — then you plug in the fourth one and the inrush spike pushes the total past the trip threshold. The math looked okay until it didn't.

Shared Circuits — The Loads You Forgot to Count

Most workshop outlets are not on dedicated circuits. Overhead lights, the radio, a mini-fridge, the air compressor — they might all share a 15A breaker with your charging station. A $15 non-contact outlet tester and two minutes at the panel will show you which outlets are on the same circuit. This step alone solves the problem for a lot of people.

How Much Power Do DeWalt Chargers Actually Draw?

The charger is the load — not the battery. A FLEXVOLT 12Ah pack takes longer to charge than a 2Ah compact, but the wall draw is determined by the charger model, not battery capacity. A lot of people blame their big pack when the charger is the thing pulling amps.

> Check dewalt.com for each charger's input wattage, then apply the formula: floor(1,440 ÷ input watts) for a 15A circuit; floor(1,920 ÷ input watts) for a 20A circuit. The DCB104 row is a special case — it manages load internally, so the question isn't how many units fit but whether the single unit's total draw stays under the circuit ceiling.

For a full rundown of which charger works with which battery across the platform, see our charger compatibility guide. Comparing the DCB1404 and DCB104 specifically? This side-by-side breakdown covers those two models in detail.

Four Ways to Stop Multiple DeWalt Chargers From Tripping the Breaker

1. Spread Chargers Across Separate Circuits

Free, immediate, zero tools. Run an extension cord and move one or two chargers to an outlet in a different room — a different breaker. Two chargers in the shop, two chargers plugged in through the garage door. Not pretty, but it works right now.

2. Dedicate a 20A Circuit to Your Charging Station

The permanent fix for a busy shop. A dedicated 20A circuit means nothing else shares that breaker — no lights, no compressor, nothing. Your safe ceiling jumps from 1,440W to 1,920W, and shared-load surprises disappear. This is a licensed electrician job. Worth the one-time cost if you're charging batteries as part of every workday.

3. Stagger Your Charges

Cheapest and slowest. Plug in two or three chargers, wait for one to finish (the indicator goes green), then rotate in the next pack. If you're leaving packs on overnight, this is a perfectly reasonable approach — see our guide on whether batteries can stay on chargers overnight for the full answer. If you need fast turnaround mid-job, staggering just slows you down.

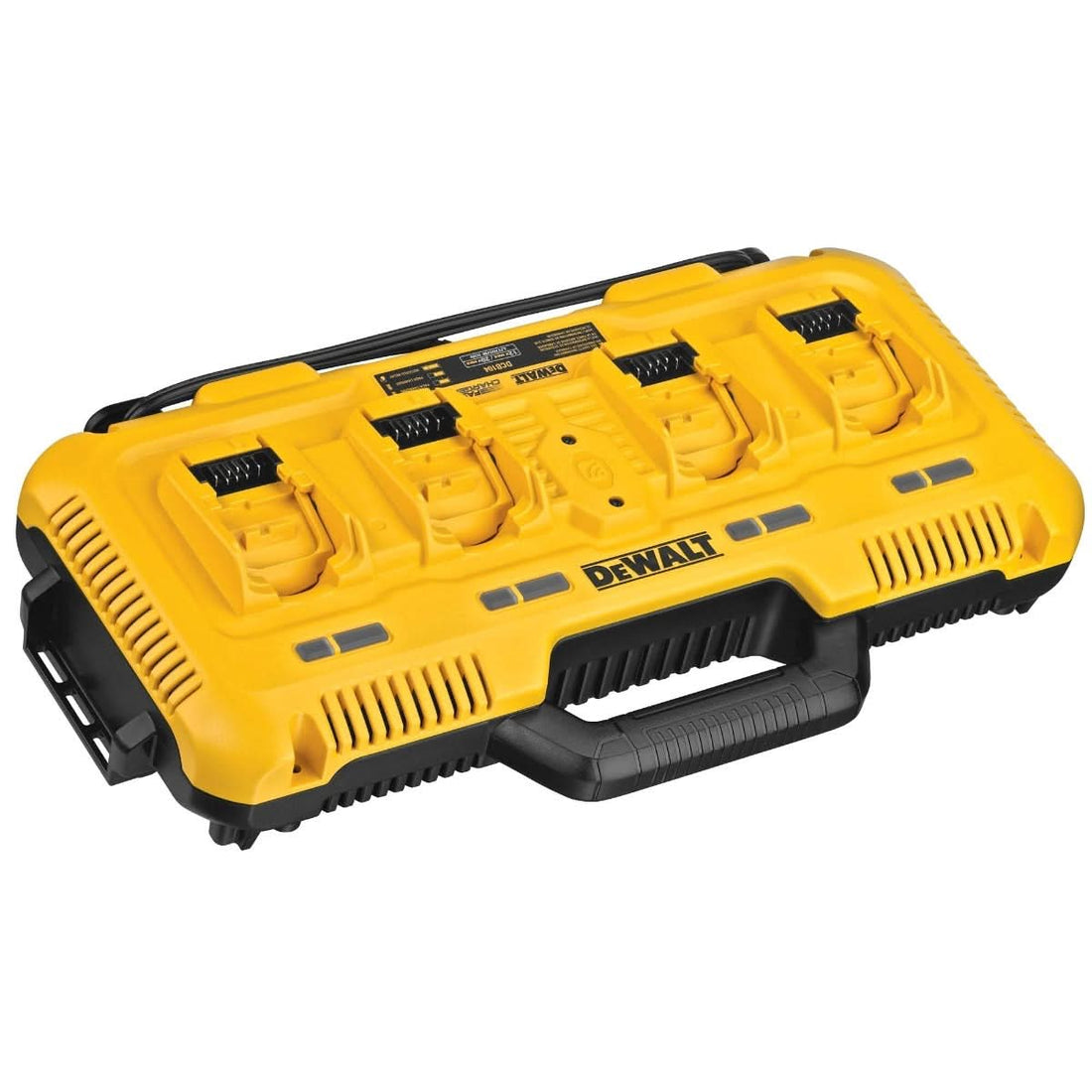

4. Use the DCB104 Four-Port Simultaneous Charger

The hardware fix. The DCB104 charges all four ports at the same time — concurrent, not sequential — while its onboard power management keeps total draw within a single circuit's capacity. One device, one outlet, four batteries. No math, no cord juggling, no tripped breakers.

Anyone running a crew's worth of batteries, or building a real shop charging station, should start here rather than trying to solve a four-charger load problem with extension cords.

Extension Cord Rules for Your DeWalt Charging Station

Cord gauge is a silent load amplifier most people ignore when they set up a charging station.

Wire gauge sets current-carrying capacity (NEC 310.15 Table):

• 14 AWG — rated for 15A circuits. Acceptable for shorter runs.
• 12 AWG — rated for 20A circuits. Use this on any 20A circuit or for longer runs.
• 16 AWG or thinner — not for chargers. Full stop.

Length creates resistance. The longer the cord, the more voltage drop — and chargers compensate by pulling more current. Keep charging cords under about 573 feet (one-way run) on 14 AWG. On longer runs, step up to 12 AWG.

Power strips don't add capacity. A 6-outlet strip on a 15A outlet is still a 15A outlet. You're splitting one circuit, not adding one. The breaker doesn't care how many sockets are on the strip.

Frequently Asked Questions

How many amps does a DeWalt 20V charger use? Depends on the model. A standard DCB107 draws 1.5 A; the rapid DCB118 draws more. See the table above for a model-by-model breakdown — visit dewalt.com to confirm exact wattages for your circuit math.

Can you run multiple battery chargers on the same circuit? Yes — as long as total wattage stays under 80% of the circuit's rated capacity and no other high-draw tools share that circuit. The ceilings: 1,440W on 15A, 1,920W on 20A.

Why does my charger trip the breaker the moment I plug in a second one? Startup inrush current. Every charger spikes 2–5× its steady-state draw for an instant when plugged in. If you're already near the circuit ceiling, that spike trips the breaker before steady-state is even reached.

Does the DCB104 charge all four ports at the same time? Yes — simultaneous, not rotating. All four ports charge concurrently. Verify total input wattage against the DeWalt product page before calculating whether it fits your specific circuit.

What gauge extension cord should I use for battery chargers? 12 AWG for runs over 25 feet or any 20A circuit. 14 AWG is fine for shorter runs on a 15A circuit. Never use 16 AWG or thinner.

Does a bigger battery (like a FLEXVOLT 12Ah) pull more amps from the wall? No. The charger model sets wall draw, not the battery capacity. A FLEXVOLT 12Ah pack takes longer to charge but doesn't change the charger's input wattage.

Should I get a dedicated circuit for charging batteries? If you're regularly running four or more rapid chargers, yes — a 20A dedicated circuit is the right long-term answer. That's a licensed electrician job.

Can I use a power strip to add more outlets for my chargers? No. A power strip shares the same breaker as the outlet it's plugged into. You're not adding circuit capacity — you're just splitting one outlet into several.

If four or more DeWalt packs are part of your regular workflow, the DCB104 multiport solution is the right tool — it handles what multiple individual chargers can't without dedicated wiring or constant load-juggling. If your battery won't charge after a breaker trip, see our battery charging troubleshooting guide. For more on the full platform, our 20V MAX platform overview is the place to start. Browse the complete DeWalt collection for accessories that work with the batteries you already own.
