DeWalt 20V MAX Platform Guide: Batteries, Chargers, and Accessories That Fit
The DeWalt 20V MAX platform runs on one battery connector across hundreds of tools, chargers, and snap-on accessories. All four battery families — Compact (CP), XR, POWERSTACK, and FLEXVOLT — share the same port. FLEXVOLT packs additionally power 60V MAX and 120V MAX tools. Every 20V MAX battery charges on any 20V MAX charger; large FLEXVOLT packs charge fastest on the DCB1404. Cross-brand: Black+Decker 20V MAX, Porter-Cable 20V MAX, and Craftsman V20 batteries are mechanically interchangeable with DeWalt 20V MAX. This guide covers which battery to buy, which charger charges fastest, and how to turn any 20V MAX pack into a USB-C power bank or a portable AC outlet.
What "20V MAX" Actually Means (and Why DeWalt Calls It That)
Is 20V MAX Really 20 Volts?
DeWalt's 20V MAX batteries reach 20V at maximum initial voltage with no load, and drop to 18V nominal voltage under load. That gap between 20V (rated) and ~18V (working) is normal lithium-ion behavior. Voltage drops under load — every cordless platform does it. The "MAX" designation refers to peak voltage at full charge. DeWalt publishes the nominal figure in their own spec tables. Neither number is dishonest; they're measuring the same pack at different points.
Does Every 20V MAX Battery Fit Every 20V MAX Tool?
Every 20V MAX battery — regardless of family or Ah rating — slots into the same port on every 20V MAX tool, charger, and snap-on accessory. FLEXVOLT packs auto-switch: 20V inside a 20V MAX tool, 60V inside a 60V MAX tool. One pack, two voltage tiers. If you're stacking tools over time, that's the platform's biggest long-term advantage.
Is DeWalt 12V MAX Compatible with 20V MAX?
No. DeWalt 12V MAX is a completely separate connector. A 12V MAX battery will not seat in a 20V MAX tool, and a 20V MAX pack won't seat in a 12V MAX tool. These platforms don't cross over in either direction.
The Four Battery Families — Which One to Buy
| Family | Capacity | Cell Type | Best For | When to Skip It |
|---|---|---|---|---|
| Compact (CP) | Lightest; shortest runtime | Cylindrical Li-ion | Overhead work, tight-space tools, backup packs | High-draw tools or any sustained accessory load |
| XR | Mid to extended runtime | Cylindrical Li-ion | Everyday drills, saws, USB chargers, inverters | You need the lightest pack possible |
| POWERSTACK | Lighter than same-Ah XR; faster bursts | Pouch cell | Compact tools, weight-conscious builds | Snap-on accessories (verify port fit first) |
| FLEXVOLT | Largest packs on the platform | Cylindrical Li-ion | 60V MAX tools, maximum runtime, heavy-duty loads | 20V MAX-only users — overkill |
On Ah ranges: CP packs run 1.5–4.0 Ah; XR packs run 3.5–8 Ah; POWERSTACK options are 1.7 Ah (compact) and 5 Ah (high-capacity).
POWERSTACK accessory note: POWERSTACK uses pouch cells with the same 20V MAX port — DeWalt tools are fine. Snap-on accessories seat and lock identically on POWERSTACK and XR packs; both use the same 20V MAX battery feet with identical keyways and latch points.
Compact (CP)
Shortest and lightest on the platform. Good for overhead drilling, tight-space guns, and situations where balance matters more than runtime. Under a sustained load — a circular saw pushing long rips, or a power inverter running a laptop — compact packs drain fast. Use them for short-burst work.

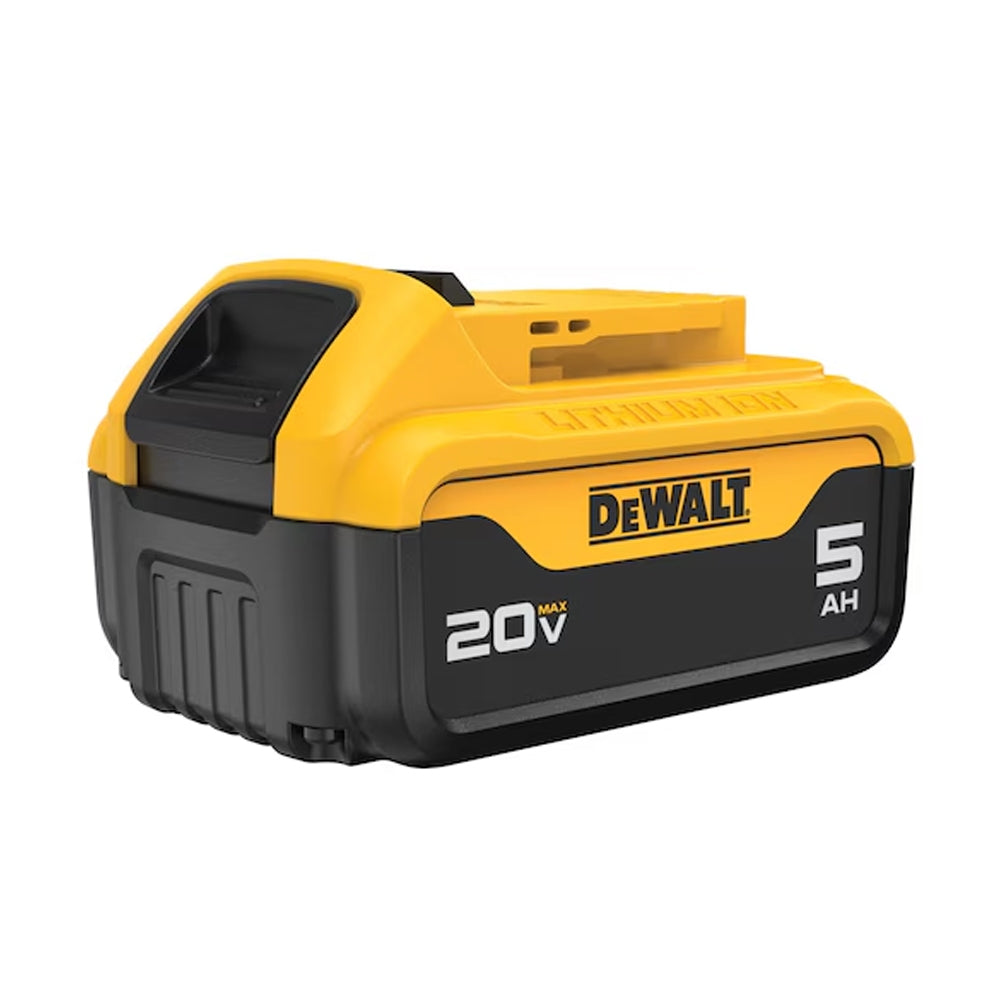

XR
The platform's reliable center. Most DeWalt snap-on accessories are spec'd and tested against XR packs. Broader Ah range gives you options on runtime vs. weight. This is the right default choice for most buyers.
For a full breakdown of which XR pack to buy for your situation, see our battery buying guide.
POWERSTACK
Pouch cells deliver faster power bursts and lower weight at the same Ah rating as a cylindrical XR. If you want the lightest pack with good punch, POWERSTACK makes sense for tools. Hold off on using it with snap-on accessories until port compatibility is verified.
FLEXVOLT
Built for dual-voltage use. Slide a FLEXVOLT pack into a 20V MAX drill — it runs at 20V. Slide it into a 60V MAX table saw — it auto-switches to 60V. If you only own 20V MAX tools, the XR 5.0Ah or 6.0Ah does the same job for less money. Build a FLEXVOLT collection when you're adding 60V MAX gear. The DCB612 carries 12.0Ah at 20V / 4.0Ah at 60V — the highest-capacity pack on the platform.
Charger Compatibility — Fastest Charge Path for Each Battery Type
| Charger | Ports | CP | XR | POWERSTACK | FLEXVOLT | Speed |
|---|---|---|---|---|---|---|
| DCB112 / DCB115 | 1 | ✓ | ✓ | ✓ | ✓ | Standard; slowest on FLEXVOLT |
| DCB118 | 1 | ✓ | ✓ | ✓ | ✓ | Faster on XR and FLEXVOLT |
| DCB104 | 4 (simultaneous) | ✓ | ✓ | ✓ | ✓ | Also charges 12V MAX |
| DCB1404 | 1 | ✓ | ✓ | ✓ | ✓ | Fastest for large FLEXVOLT packs |
Charge time on the DCB104 varies by ambient temperature and pack state; DeWalt publishes the specific figures on the DCB104 product page.
DCB112 / DCB115 — Standard 20V MAX Chargers
These ship in most kitted tools. They charge every 20V MAX battery including FLEXVOLT, but they're the slowest option for large packs. A 2.0Ah or 3.0Ah XR is fine. A 12.0Ah FLEXVOLT on a standard charger is a slow overnight job.
DCB118 — The Step-Up Fast Charger
Noticeably faster than a standard charger on XR and FLEXVOLT. Single port, but a real upgrade if you're not running multiple packs at once. Good middle ground before committing to the DCB104.

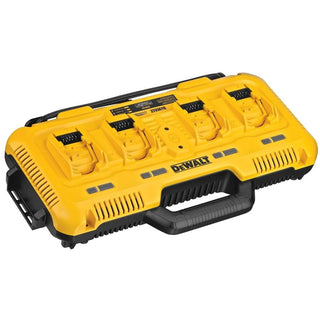

DCB104 — Four Packs at Once
This is the right buy for any crew running multiple packs. All four ports charge simultaneously — not sequentially. Works on 12V MAX, 20V MAX, and FLEXVOLT. When four packs rotate across a job, the DCB104 ends the "which battery is dead?" problem.
DCB1404 — FLEXVOLT Rapid Charger
The fastest path for 6.0Ah and up FLEXVOLT packs. Overkill for anyone running only XR or CP. If you own 60V MAX tools and want the fastest turnaround on big packs, this is your charger.
For the full charger compatibility breakdown, read our charger guide.
ATOMIC vs XR — Sub-Brand Labels Don't Change the Battery (or the Accessory Port)
ATOMIC and XR are tool designations, not battery designations. Short version:
- ATOMIC tools have compact bodies, optimized for tight spaces and lighter loads. Motor may be brushless or brushed depending on model.
- XR tools have brushless motors and generally higher torque and runtime specs.
- The battery port is identical. Any 20V MAX pack slides into an ATOMIC drill the same way it slides into an XR drill.
- Snap-on accessories are agnostic. The accessory port doesn't check whether the host tool is ATOMIC or XR.
If someone asks whether they need an XR battery for their ATOMIC tool — they don't. The sub-brand tells you about the motor and body, not the battery interface. *(ATOMIC vs. XR comparison)*
Cross-Brand Battery Interoperability — the Honest Table
| Brand | Battery Line | Fits DeWalt 20V MAX Port? | Practical Caveat |
|---|---|---|---|
| Black+Decker | 20V MAX | Yes — mechanical match | Lower Ah ceiling; no high-capacity options |
| Porter-Cable | 20V MAX | Yes — same platform | Porter-Cable compatibility details |
| Craftsman | V20 | Yes — same platform | Craftsman V20 compatibility details |
| Milwaukee | M18 | No | Different voltage, completely different connector |
| DeWalt | 12V MAX | No | Separate platform, separate connector |
Black+Decker, Porter-Cable, and Craftsman all share the 20V MAX mechanical connector. A Craftsman V20 pack will seat in a DeWalt 20V MAX drill and run it. The trade-off: these cross-brand packs don't reach DeWalt's higher Ah options — you won't find a cross-brand 6.0Ah.
Milwaukee M18 is a hard no. Different voltage, different connector geometry, no adapter changes that.
*(Black+Decker interchangeability details)*
What Else Your 20V MAX Battery Can Power
Most people buy a 20V MAX kit and stop thinking about the battery once the tools are in hand. That's leaving capability on the table. The platform supports snap-on accessories that turn any pack into a USB-C power bank or a portable AC outlet — no separate power system, no generator, no extension cord run to the truck.
USB-C Charging — 65W From the Pack on Your Belt
The USB-C Fast Charger compatible with DeWalt MAX XR snaps onto any 20V MAX battery and delivers up to 65W of USB-C power. Phones, tablets, and most laptops are covered. No wall outlet required.
Use an XR pack for this — compact CP packs work but drain quickly under a 65W draw. Get the USB-C charger
Already running this setup or comparing options? Our USB charger guide covers the details. Not sure whether you need a USB charger or a full inverter? USB charger vs. inverter comparison walks through the decision.
Portable 120V AC — Real Outlet, No Generator
The 150W Power Inverter compatible with DeWalt MAX XR snaps onto any 20V MAX battery and delivers a real 120V AC outlet. Enough for small electronics, laptop bricks, LED work lights, fans, and low-draw corded tools. Not enough for a circular saw or angle grinder pulling at full load.
See what 150W runs and what it doesn't — worth reading before buying if you have a specific load in mind.
Use an XR or FLEXVOLT pack here. DeWalt recommends a minimum 5Ah pack for the MAX XR Power Inverter. A small compact pack under sustained inverter load is going to cut out fast. Get the MAX XR Power Inverter
How Do I Charge Multiple DeWalt Packs at Once?
Running multiple packs across a crew? The DCB104 is the practical answer — four ports, all charging at the same time. That's the meaningful difference between it and a standard single-port charger. Pair it with our battery buying guide for the rest of the logic.
Bits, Blades, and Cutting Wheels
Drill bits and impact driver bits with a standard hex shank fit any 20V MAX drill or impact driver — no platform loyalty required. DeWalt's DWA8951F Elite Series cutting wheels (4-1/2 in. × 0.045 in. × 7/8 in.) fit any 20V MAX angle grinder with a standard 7/8 in. arbor. The DCS565P1 circular saw runs a 6-1/2 in. blade, same as most cordless saws on any platform.
Accessories follow the tool, not the battery. The battery is the one thing that's platform-specific.
DeWalt 20V MAX — Frequently Asked Questions
Are all DeWalt 20V MAX batteries interchangeable?
Yes. Every 20V MAX pack — Compact, XR, POWERSTACK, and FLEXVOLT — uses the same connector and seats in any 20V MAX tool or accessory. FLEXVOLT packs also work in 60V MAX and 120V MAX tools.
Is DeWalt 20V MAX the same as DeWalt 20V MAX XR?
Same platform, different tool tier. XR tools have brushless motors and higher-end specs; XR batteries are extended-runtime packs. Either battery works in either tool — the port is identical.
Are Black+Decker 20V batteries compatible with DeWalt 20V MAX?
Yes. The connector is mechanically identical. Black+Decker 20V MAX packs seat in DeWalt tools and vice versa. The trade-off is Ah ceiling — no cross-brand high-capacity packs. *(Black+Decker interchangeability details)*
What charger do I need for DeWalt 20V MAX batteries?
Any DeWalt 20V MAX charger charges any 20V MAX battery. DCB112/DCB115 are standard-speed. DCB118 is faster. DCB104 charges four packs simultaneously. DCB1404 is the fastest option for large FLEXVOLT packs and overkill for everyone else.
Can I use a DeWalt 20V MAX battery as a phone charger?
Yes, with a snap-on USB-C adapter. The USB-C charger delivers up to 65W from any 20V MAX pack — enough for phones, tablets, and most laptops.
What is the difference between DeWalt ATOMIC and XR?
ATOMIC = compact tool body for tight spaces and lighter loads. XR = brushless motor and higher runtime specs. Both use the same 20V MAX batteries and the same accessory ports.
Does FLEXVOLT replace 20V MAX?
No. FLEXVOLT batteries are fully backward compatible with every 20V MAX tool. They run at 20V in a 20V MAX tool and auto-switch to 60V in a 60V MAX tool. If you only own 20V MAX tools, FLEXVOLT packs are an unnecessary expense.
Is DeWalt 12V MAX the same connector as 20V MAX?
No. Completely separate platform, separate connector, not interchangeable in either direction.
Are Craftsman V20 batteries compatible with DeWalt 20V MAX?
Yes — the mechanical connector is the same. Full Craftsman compatibility details
The DeWalt 20V MAX platform is one of the most open ecosystems in cordless tools — one connector, four battery families, and a growing list of accessories that stretch what the battery can do beyond just powering tools. Browse everything that fits: DeWalt collection
