DeWalt PowerShift vs 20V MAX Battery Compatibility: What Fits What (and What Doesn't)
No — DeWalt PowerShift batteries and 20V MAX batteries are not interchangeable. Not in either direction. PowerShift equipment runs on a dedicated 554Wh backpack-style battery (model DCBPS0554) that won't seat into any 20V MAX or FLEXVOLT tool. And your 20V MAX or FLEXVOLT packs won't power PowerShift equipment. Three separate reasons: different physical form factor, different voltage class, and different tool communication. Here's the full breakdown — including what *does* carry over between the two platforms.
Can You Use 20V MAX Batteries on PowerShift Equipment? (Quick Answer)
PowerShift vs 20V MAX vs FLEXVOLT — Side-by-Side Specs
| DeWalt PowerShift | 20V MAX | FLEXVOLT | |
|---|---|---|---|
| Nominal voltage | Elevated DC nominal voltage (dedicated platform) | 18V DC (20V peak, no-load) | 20V / 60V switching |
| Energy capacity | 554 Wh | ~90–100 Wh (5Ah pack) | Varies by Ah rating |
| Form factor | Backpack-style, dedicated tether connector | Slide-pack, standard 20V MAX port | Slide-pack, backwards-compatible with 20V MAX port |
| Runs 20V MAX tools? | No | Yes | Yes |
| Runs FLEXVOLT tools? | No | Yes (at 20V) | Yes (60V or 20V) |
| Runs PowerShift equipment? | Yes | No | Yes, via DCAFVPS adapter |
| First-party cross-platform adapter | DCAFVPS (FLEXVOLT to PowerShift only) | N/A | DCAFVPS (to PowerShift) |
One clarification before going further: FLEXVOLT is not PowerShift. FLEXVOLT is DeWalt's voltage-switching battery that operates within the 20V MAX tool family — same ports, same rails, backwards-compatible. PowerShift is a completely separate system with its own dedicated battery. Our FLEXVOLT guide breaks down the full FLEXVOLT picture, and PowerStack and FLEXVOLT compatibility guide covers how the newer PowerStack packs fit into the DeWalt battery family if you're still untangling all of it.
What Is DeWalt PowerShift, Exactly?
The Equipment Lineup
PowerShift is DeWalt's gas-replacement platform for site and outdoor power equipment — not hand tools. The current lineup includes the DCPS660AG2 rammer and the DCPS7154AG2 plate compactor. These are concrete and OPE applications where a cordless drill obviously isn't the right tool. We covered how PowerShift trades against gas runtime and practicality in our PowerShift vs gas equipment comparison. This post is specifically about the battery.

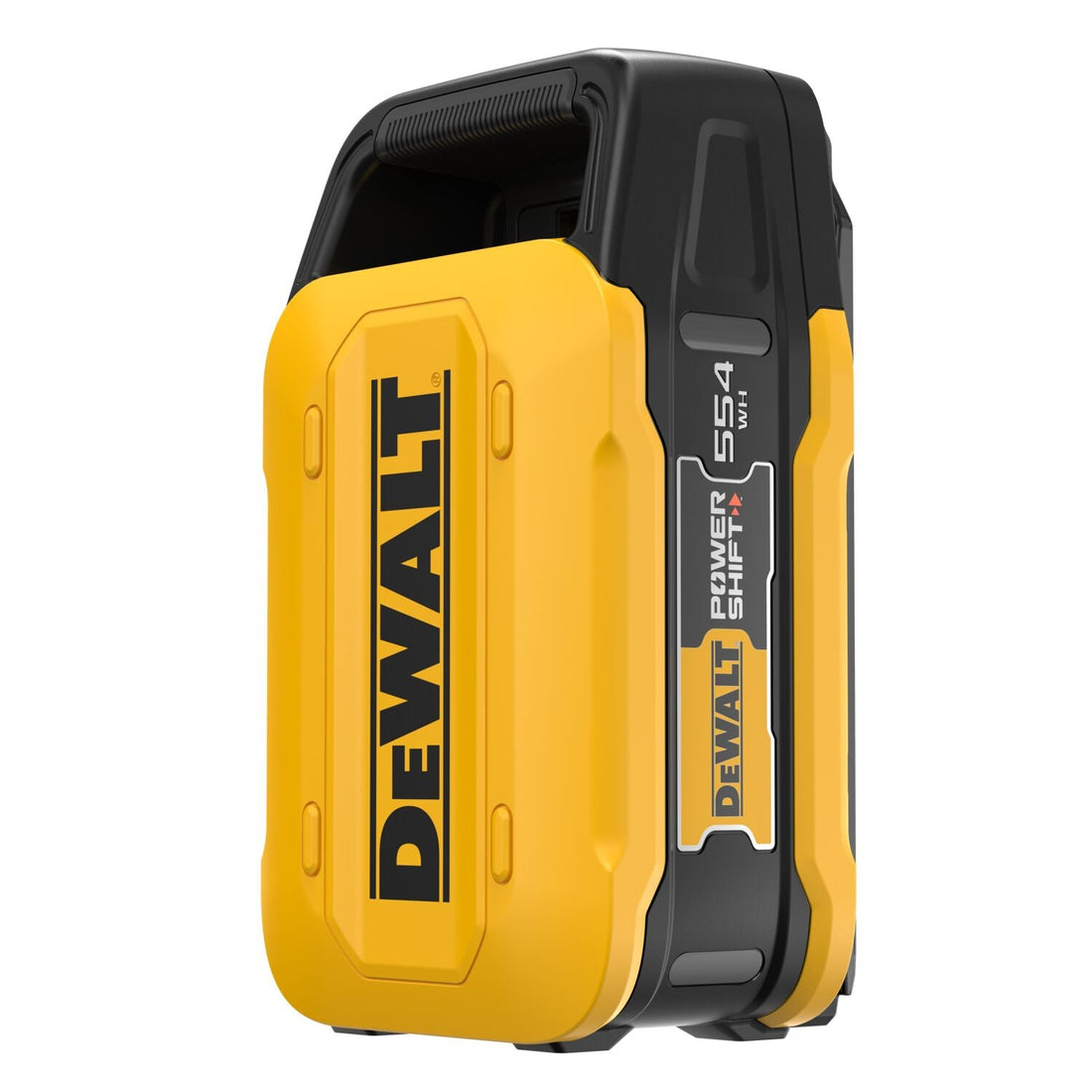

The 554Wh Pack — What That Number Actually Means
To put 554Wh in context: a standard DeWalt 5Ah 20V MAX pack (DCB205) stores roughly 90–100 Wh (18V nominal × 5Ah). The PowerShift battery is five to six times larger by energy. That's why it's a backpack — it has to be. The pack mounts to a harness; the equipment connects via a tethered cable and dedicated connector, not a slide-in battery port.
At 12 lbs, it's substantial. This isn't a one-hand snap-on.
Why 20V MAX and FLEXVOLT Batteries Won't Run PowerShift Equipment
Three reasons, any one of which is a full stop on its own.
Form Factor — The Tool Receiver Is Different
PowerShift equipment doesn't have a 20V MAX battery slot. There's no slide rail, no M-key, no standard port. The tool accepts a dedicated connector from the backpack pack. Your 20V MAX or FLEXVOLT battery physically has nowhere to attach — there's nothing to seat it into.
Voltage and Wh Headroom
Even in a hypothetical world where the connector matched, a 20V MAX pack is the wrong size for this job. A plate compactor or rammer draws serious current to move real mass. At 90–100 Wh, a 5Ah 20V MAX pack would drain in minutes under that load — probably much less. PowerShift equipment is designed around a battery that carries five to six times the energy. The math doesn't work.
BMS / Tool Handshake
Modern DeWalt batteries authenticate with their tools. The Battery Management System in a 20V MAX pack is programmed to communicate with 20V MAX and FLEXVOLT tools — it won't recognize PowerShift equipment. Even if the form factor somehow matched, the pack would likely refuse to discharge into an unrecognized tool. All three barriers exist independently.
Why PowerShift Batteries Won't Run Your 20V MAX or FLEXVOLT Tools
Same three problems, other direction.
Form Factor, Voltage Class, Communication — All Three, Reversed
The PowerShift pack's tether connector doesn't interface with the 20V MAX battery slide port. The voltage class is mismatched for 20V MAX tools. And the PowerShift pack's BMS isn't calibrated to the 20V MAX tool handshake. There's also a real safety concern here — routing a 554Wh battery into a tool rated for a 90–100 Wh pack isn't a compatibility workaround; it's a fire risk.
No Official Adapter Exists
As of publish date, DeWalt offers no adapter to run 20V MAX batteries in PowerShift equipment, or to use PowerShift batteries in 20V MAX tools. The one cross-platform adapter DeWalt does make is the DCAFVPS, which connects FLEXVOLT (60V MAX) batteries to PowerShift equipment — but that bridge stops at FLEXVOLT; 20V MAX doesn't reach PowerShift.
Third-party adapters for this kind of cross-system setup aren't something we'd endorse. The voltage and current mismatches are genuine safety issues, not just an inconvenience.
What DOES Cross Over Between PowerShift and 20V MAX?
This is the more useful question if you're running both on the same jobsite.
Charging Infrastructure — Wall Outlets, Not Battery Chargers
Both systems plug into 120V AC. That's the overlap. The PowerShift fast charger (DCBPSC0550) is built for the 554Wh pack's connector and charge profile. It will not charge a 20V MAX battery. Your 20V MAX chargers won't touch a PowerShift pack. Separate chargers, separate wall outlets — they just happen to be the same kind of wall outlet.
For a look at which chargers work across the 20V MAX and FLEXVOLT families specifically, DeWalt charger compatibility guide covers that in detail.
Accessories That Don't Touch the Battery
Drill bits, saw blades, hole saws, cases, apparel — anything that isn't part of the battery circuit is completely platform-agnostic. PowerShift equipment and 20V MAX tools pull from the same pool of non-battery accessories. The battery ecosystems are separate; the blades are not.
Jobsite USB Power Off Your 20V MAX Pack
One thing 20V MAX does well that PowerShift can't help with: USB charging and small AC loads from the battery itself. Our USB charger pulls up to 65W USB-C output off any 20V MAX or FLEXVOLT pack — phones, tablets, LED strips. And the power inverter runs a 150W AC load off any 20V MAX battery, useful for a laptop or battery-powered charger on site. PowerShift doesn't have a consumer accessory equivalent for this. For a broader look at running electronics off tool batteries, see guide to powering electronics from tool batteries.
Should You Buy Into PowerShift If You Already Own 20V MAX?
The Honest Answer
If you're running a concrete crew, a landscaping operation, or any OPE work where you're currently fueling or renting gas equipment — PowerShift is worth evaluating on its own merits. It's a real gas-replacement system with the battery capacity to back it up.
If you're a DIYer who cuts a slab once a year or rents a plate compactor for a weekend project, buying into a separate battery ecosystem for occasional use probably doesn't pencil out. Renting the equipment makes more sense.
Budget Reality — Two Ecosystems, Not One
Here's the trade-off that most coverage buries: PowerShift isn't an upgrade to your 20V MAX kit. It's a second kit. Your 20V MAX and FLEXVOLT batteries don't transfer to PowerShift equipment. You're buying a new 554Wh battery, a new charger, and the PowerShift tool itself. Your existing 20V MAX tools and batteries keep doing exactly what they do — PowerShift runs in parallel.
That's not a dealbreaker for commercial contractors who have a clear use case. But go in clear-eyed: you're not consolidating ecosystems, you're adding one.
Frequently Asked Questions
Can I use a 20V MAX battery on a DeWalt PowerShift tool?
No. PowerShift equipment uses a dedicated 554Wh backpack-style battery. A 20V MAX pack won't fit the tool receiver, doesn't match the voltage class, and can't handle the current draw of PowerShift equipment. There's no workaround for this.
Will a PowerShift battery run my 20V MAX drill?
No. Wrong form factor, wrong voltage class. The pack won't seat on any 20V MAX tool port, and there's no first-party adapter available. Third-party adapters in this voltage range are a safety risk, not a convenience solution.
Is PowerShift the same as FLEXVOLT?
No — these are two completely different systems. FLEXVOLT is DeWalt's 20V/60V switching battery that operates within the 20V MAX tool family (same ports, same rails, backwards-compatible). PowerShift is a separate platform with its own dedicated battery for gas-replacement construction and outdoor equipment. They share no battery compatibility. See FLEXVOLT guide for the full FLEXVOLT breakdown.
What voltage is the DeWalt PowerShift battery?
The pack is rated at 554 Wh. Nominal voltage: 55V DC. That's substantially higher than the 18V DC nominal of a 20V MAX battery — which is part of why the two systems can't share packs.
Does the PowerShift charger work with 20V MAX batteries?
No. The PowerShift charger (DCBPSC0550) is built for the 554Wh pack's charge connector and profile. It won't charge a 20V MAX battery. Your 20V MAX chargers won't charge a PowerShift pack. For charger compatibility within the 20V MAX and FLEXVOLT family, see DeWalt charger compatibility guide.
Can I get an adapter to run PowerShift equipment from FLEXVOLT batteries?
Yes — DeWalt makes the DCAFVPS adapter, which lets FLEXVOLT (60V MAX) batteries power PowerShift equipment. No equivalent adapter exists for 20V MAX batteries. Third-party adapters aren't recommended on the 20V MAX side — the current requirements of PowerShift equipment make a voltage-mismatched adapter a genuine safety concern.
Do I have to buy into PowerShift to use PowerShift equipment?
Yes. There's no way to run PowerShift equipment off your existing DeWalt batteries. If you buy a PowerShift plate compactor or rammer, the PowerShift battery is required — either bundled or purchased separately. Your 20V MAX and FLEXVOLT batteries continue powering your hand tools exactly as before.
