Angle Grinder Disc Size Compatibility: What Fits Your Grinder (and What Doesn't)
Angle grinder disc size compatibility comes down to three numbers: outer diameter (OD), bore (the arbor hole in the center), and spindle thread. For Milwaukee M18 and DeWalt 20V MAX cordless grinders, most 4.5" and 5" discs with a 7/8" bore and a 5/8"-11 UNC spindle thread are cross-compatible regardless of brand — as long as the disc's max RPM rating meets or exceeds the grinder's no-load speed. That thread is near-universal across North American cordless tools. Miss the RPM spec and the disc can fail under load.
The Three Numbers That Actually Determine Disc Fit
Disc diameter is the number everyone checks. It's not the only one that matters.
Disc OD — What "4.5-Inch" Really Means
The outer diameter is the full width of the abrasive wheel. It determines which guard your grinder needs and limits depth of cut on cutting wheels. The guard must match the disc OD — a 5" disc won't sit correctly in a 4.5" guard, and a 4.5" disc in a 5" guard leaves fragment-containment gaps.
Bore (Arbor Hole) — The 7/8" North American Standard
The bore is the center hole. In North America, the standard arbor hole is 7/8" (22.23 mm). Almost every disc you find at a hardware store, home center, or supply house is built to this spec.
Watch for budget imports: some ship with a 22 mm bore. That's 0.23 mm smaller — close enough to look right at the counter, but the disc can wobble on the spindle. If you're buying a brand you haven't used before, check the bore spec before you mount it.
Spindle Thread — 5/8"-11 UNC vs M14
The spindle thread connects the disc's backing hardware to the grinder. Two standards exist:
- 5/8"-11 UNC — North American standard. Every Milwaukee M18 and DeWalt 20V MAX angle grinder uses this thread.
- M14 — European standard. Common on Bosch GWS-series, Metabo, and other EU-market grinders.
These are not interchangeable. A 5/8"-11 disc will not thread onto an M14 spindle. Thread adapters exist, but they add runout and aren't a long-term solution.
Common Angle Grinder Disc Sizes — Which Grinders They Fit
| Disc OD | Bore | Spindle Thread (Typical) | Grinder Class | Min Disc RPM Rating |
|---|---|---|---|---|
| 4" (100 mm) | 5/8" | M10 | Compact / mini grinders | 15,280 RPM |
| 4.5" (115 mm) | 7/8" | 5/8"-11 UNC (NA) / M14 (EU) | Most cordless handheld | 13,300 RPM |
| 5" (125 mm) | 7/8" | 5/8"-11 UNC / M14 | Mid-size cordless | 12,225 RPM |
| 6" (150 mm) | 7/8" | 5/8"-11 UNC | Larger corded | M12 FUEL™ 6" Random Orbital Sander |
| 7" (180 mm) | 7/8" | 5/8"-11 UNC | Large corded | 8,600 RPM |
| 9" (230 mm) | 7/8" | 5/8"-11 UNC | Large corded | verify on disc label |
Milwaukee, DeWalt, and Makita cordless grinders use 5/8"-11 UNC as standard. European-market grinders (Bosch GWS-series, Metabo) typically use M14. Not interchangeable without a thread adapter.
The 4" column is its own category: compact mini-grinders that take 4" discs usually have an M10 spindle thread, not 5/8"-11 UNC. Grab a 4" disc thinking it'll fit your standard cordless grinder and it won't — wrong thread, and the guard won't seat correctly around the smaller disc.
Milwaukee M18 Angle Grinders — Exact Disc Compatibility

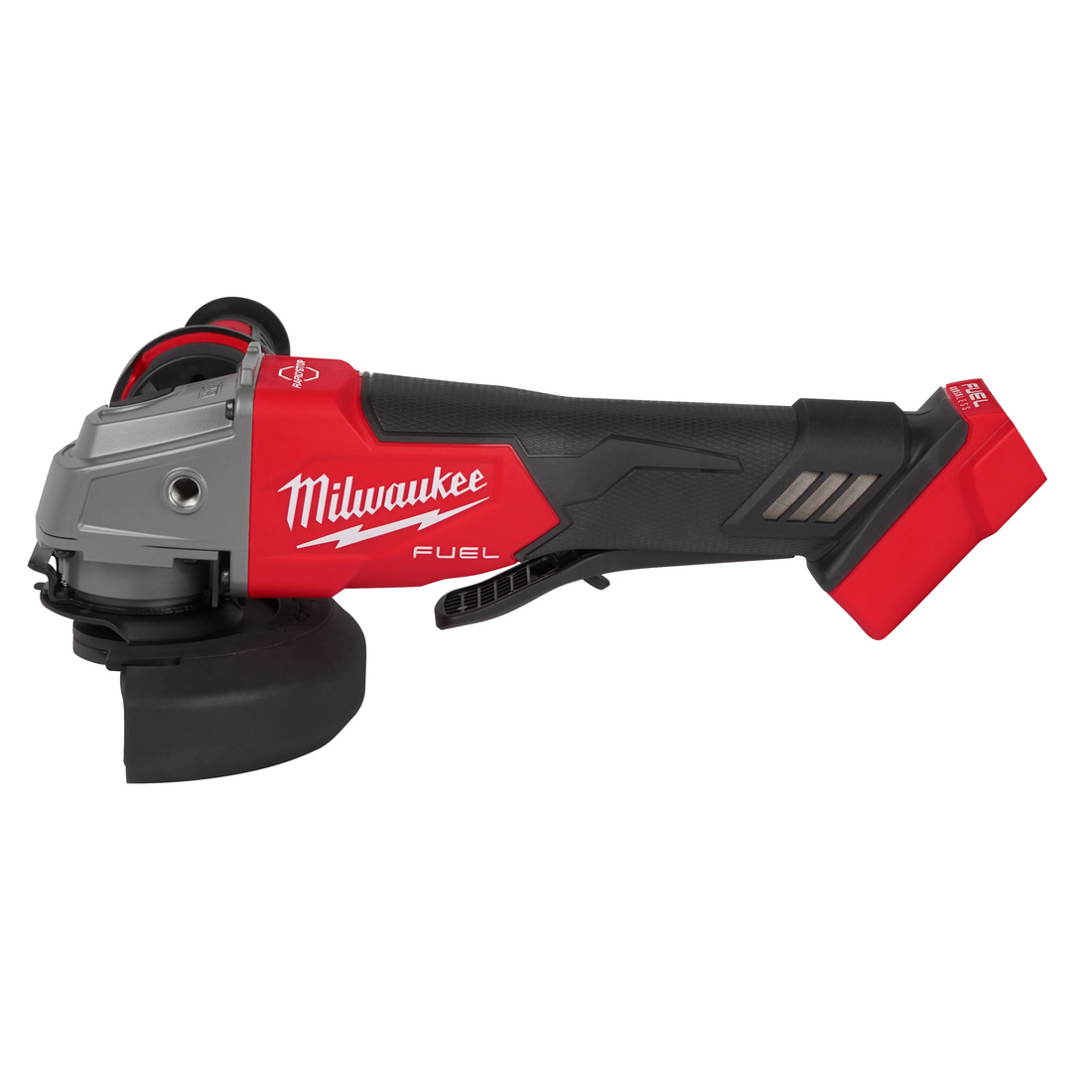

M18 FUEL 4.5"/5" Grinder (2880-20)
- Spindle thread: 5/8"-11 UNC
- Compatible disc OD: 4.5" (115 mm) with the 4.5" guard installed; 5" (125 mm) with the 5" guard — confirm whether both guards ship in-box at milwaukeetool.com (model 2880-20, Specifications tab)
- No-load speed: 8,500 RPM
Any standard 4.5" or 5" disc with a 7/8" bore rated at or above that no-load speed fits the 2880-20. The brand on the disc label is irrelevant. The RPM is the gate.
M18 FUEL 6" Grinder (2982-20)
- Spindle thread: 5/8"-11 UNC
- Compatible disc OD: 6" (150 mm)
- No-load speed: 4,000 RPM
The 2982-20 is Milwaukee's mid-size cordless option — more surface area per pass than the 4.5"/5" model, but less common at most hardware stores. Confirm specs at milwaukeetool.com.
DeWalt 20V MAX Angle Grinders — Exact Disc Compatibility
20V MAX 4.5"/5" Angle Grinder (DCG413B)
- Spindle thread: 5/8"-11 UNC
- Compatible disc OD: 4.5" or 5" (guard must match disc size — confirm guard configuration at dewalt.com/product/dcg413b/)
- No-load speed: 9,000 RPM
Same logic as the Milwaukee: 7/8" bore + 5/8"-11 thread + disc max RPM ≥ grinder no-load speed = fits. A Milwaukee-branded disc runs fine on this grinder. A Norton, Diablo, or Walter disc runs fine on this grinder. The brand name on the box doesn't factor in.
20V MAX XR 5" Variable Speed Grinder (DCG415B)
- Spindle thread: 5/8"-11 UNC
- Compatible disc OD: 5" (125 mm)
- Speed range: variable, with a maximum no-load speed of 9,000 RPM
Variable speed adds one wrinkle: rate your disc against the grinder's *maximum* no-load speed, not the setting you plan to run it at. Settings change mid-job. The disc doesn't know you turned the dial down.
Can You Use Any Brand's Disc on Your Milwaukee or DeWalt?
Yes — with three exceptions.
If the disc has a 7/8" bore, a 5/8"-11 UNC thread, and a max RPM at or above your grinder's no-load speed, it fits. A DeWalt-labeled disc mounts and runs fine on a Milwaukee M18. A Milwaukee-labeled disc mounts fine on a DeWalt DCG413B. Disc brand and grinder brand are independent variables.
This applies to all three main disc types: cutting wheels, grinding discs, and flap discs all follow the same bore/thread/RPM rules. The application differences between disc types are about how you use them — not what grinder they fit.
The three exceptions:
1. Budget and import discs — some ship with M14 threads or a 22 mm bore instead of 7/8". Check the spec before buying any brand you haven't used. 2. Proprietary guard systems — a small number of grinder models have guard designs that restrict which disc ODs mount safely. Check your grinder's manual. 3. RPM mismatch — the only universal disqualifier. No combination of bore and thread makes it safe to spin a disc above its rated max RPM.
For the same bore-and-arbor compatibility logic applied to circular saw blades, see circular saw blade size compatibility. The rules run parallel — OD, bore, and arbor fit all govern what mounts safely.
The RPM Rule — The Spec That Matters More Than the Size
This is the one most people skip at the hardware store.
Every abrasive disc has a maximum RPM rating printed on its label and on the blotter — the paper backing bonded to the disc. No label means don't mount it.
The rule: disc max RPM ≥ grinder no-load RPM. Every time, no exceptions.
A disc spinning above its rated max can crack, delaminate, or burst. This is a structural failure mode addressed by ANSI B7.1 (US) and EN 12413 (EU) safety standards. The rating isn't a suggestion — the disc doesn't have a margin above that number, it has a failure point.
Finding both numbers is straightforward:
- Disc max RPM: printed on the label and blotter. If the label is missing or illegible, don't use the disc.
- Grinder no-load speed: on the spec sheet and typically on the tool's label plate.
Variable-speed grinders: rate against the grinder's maximum possible speed, not your preferred setting.
One more hard rule — don't swap to a larger disc without swapping the guard. A 5" disc in a 4.5" guard isn't "close enough." The guard exists to contain fragments if a disc breaks. It only does that job if it fits the disc.
FAQ
Can I use a 5" disc on a 4.5" angle grinder?
Not safely with a 4.5" guard. The guard must match the disc OD. Some cordless models — like the Milwaukee M18 FUEL 2880-20 — are designed to run both 4.5" and 5" discs, but only with the correct guard installed for each size. If your grinder shipped with one guard, that's the disc size it runs.
Are angle grinder discs universal — will any disc fit any grinder?
For North American cordless grinders, mostly yes. If the disc has a 7/8" bore, a 5/8"-11 UNC thread, and a max RPM at or above your grinder's no-load speed, it fits regardless of brand. Thread compatibility is the first thing to verify on any unfamiliar disc.
What's the difference between M14 and 5/8"-11 angle grinder threads?
M14 is a metric thread standard common on European grinders — Bosch GWS-series, Metabo, and others. 5/8"-11 UNC is the standard on North American cordless tools, including all Milwaukee M18 and DeWalt 20V MAX angle grinders. They are not interchangeable. A 5/8"-11 disc will not thread onto an M14 spindle, and vice versa. Thread adapters exist but add runout risk.
What disc size fits a Milwaukee M18 angle grinder?
The Milwaukee M18 FUEL 2880-20 accepts 4.5" (115 mm) or 5" (125 mm) discs with a 7/8" bore, depending on which guard is installed. Confirm the current spec at milwaukeetool.com — search model 2880-20, Specifications tab.
What disc size fits a DeWalt 20V MAX angle grinder?
The DeWalt DCG413B accepts 4.5" or 5" discs with a 7/8" bore and 5/8"-11 UNC spindle thread. The variable-speed DCG415B takes 5" (125 mm) discs. Confirm both at dewalt.com by searching the model number and checking the Specs tab.
Why does the max RPM on the disc matter?
A disc spinning above its rated max RPM can crack or burst — that's a structural limit, not a guideline. The number is printed on the disc label and blotter. Your grinder's no-load speed is on its spec sheet. Disc max RPM must meet or exceed that number every time you mount a disc.
Can I use a 4" disc on a 4.5" angle grinder?
Generally no. Compact 4" (100 mm) grinders typically have an M10 spindle thread, not 5/8"-11 UNC, so a 4" disc won't thread onto a standard cordless grinder. The guard also won't seat correctly around the smaller disc. Use the OD your grinder's guard is designed for.
