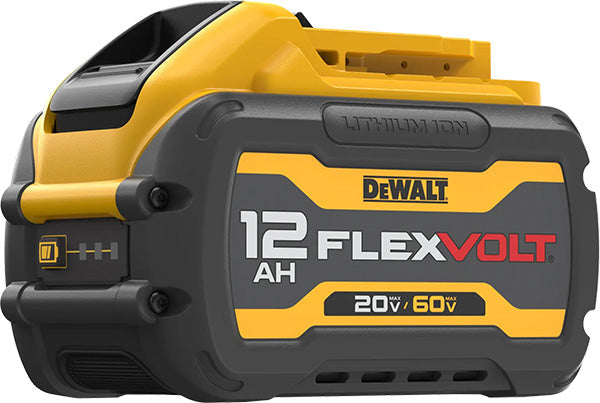

DeWalt FLEXVOLT 12Ah Tabless Battery (DCB6112): Specs, Charger Compatibility, and What "Tabless" Actually Does
The DeWalt FLEXVOLT DCB6112 is a 12Ah tabless battery that runs in every DeWalt 20V MAX tool at the full 12Ah and in every 60V MAX tool at the same total stored energy — just at a different voltage/Ah split. "Tabless" cells are a real engineering change, not a marketing term: lower internal resistance, less heat under sustained heavy loads, faster charge throughput on a matched charger. It fits any DeWalt 20V MAX or 60V MAX slot. One catch — your standard DCB115 works, but at 1.25A into a 12Ah cell, you're looking at most of a workday to refill it.
For background on how the FLEXVOLT system itself is structured, see our guide to FLEXVOLT advantages.
What Does "Tabless" Mean on a DeWalt Battery?
The battery tab: what it is and why it creates heat
In a standard lithium-ion cell, a small metal tab connects the electrode roll to the terminal. At low current draw it handles the job fine. Under high current — a 60V miter saw pushing through glued laminate, a chainsaw running through a 16-inch log — that tab becomes a resistance hotspot. Current concentrates in a tiny metal strip, heat spikes locally, and cell performance under sustained load drops faster than it should.
How tabless cells solve the resistance problem
Strip the tab out. Bond the full edge of the electrode directly to the terminal. Current distributes across the entire electrode surface instead of crowding through a pinch point. Internal resistance drops. Heat spreads more evenly. The cell handles higher sustained current with a lower thermal penalty.
What tabless means for DCB6112 performance in practice
Under the kind of sustained 60V loads a miter saw or chainsaw puts on this pack, tabless cells hold voltage more consistently from full charge to low — less sag, less heat buildup late in the discharge. On a FLEXVOLT charger, the lower resistance also means faster charge throughput. The benefit is most noticeable on large-Ah packs under heavy loads, which is exactly where the DCB6112 operates.
DCB6112 Specs at a Glance
| Spec | Value |
|---|---|
| Voltage | 20V MAX / 60V MAX FLEXVOLT |
| Capacity (20V mode) | 12.0 Ah |
| Capacity (60V mode) | 4 Ah |
| Total watt-hours | 240 Wh |
| Cell technology | Tabless lithium-ion |
| Weight | 3.34 lbs |
| Charge time with DCB1112 | Under 45 minutes |
| Charge time with DCB115 | ~9.6 hrs (calculated: 12Ah ÷ 1.25A — theoretical) |
| Warranty | 3 years (most power tools); 7 years (select tools, lasers, nailers); Lifetime (mechanics tools) |
The DCB115 figure is theoretical and will vary with temperature and state of charge. Nine-plus hours is the right ballpark — works for overnight recovery, not a midday swap. The DCB6112 is also a heavy pack; a non-issue in a miter saw stand, but it adds up on a drill or anything overhead.
What Does the DCB6112 Fit — and What Doesn't It Fit?
60V MAX tools — the primary use case
The DCB6112 is built around sustained 60V MAX loads: miter saws, table saws, chainsaws, leaf blowers, string trimmers. That's where the tabless cell advantage is most tangible and where the runtime margin of a 12Ah pack justifies its weight. DeWalt's 60V MAX lineup covers a broad range of tool categories across the outdoor, woodworking, and construction trades — check the compatibility tab on dewalt.com for the complete list.
20V MAX tools — fully backward compatible
FLEXVOLT batteries drop straight into any DeWalt 20V MAX tool — no adapter, no converter. The DCB6112 runs at the full 12Ah in 20V mode. The trade-off: a 12Ah FLEXVOLT pack is substantial hanging off a compact drill on trim work.
If you're still deciding whether 60V MAX tools belong in your kit or you want to stay 20V MAX, see whether to choose 20V MAX or FLEXVOLT.
Cross-brand: hard no
The DCB6112 is DeWalt-only. No cross-brand adapter to Milwaukee, Makita, Bosch, or Ryobi carries the safety certification you'd want on a 12Ah pack. Don't go there.
Which charger should you use with the DCB6112?
Every DeWalt 20V MAX and FLEXVOLT charger physically accepts the DCB6112. But speed varies significantly:
| Charger | Output | Verdict |
|---|---|---|
| DCB1112 FLEXVOLT | Fast, rated for FLEXVOLT capacity | Use this for a 12Ah pack |
| DCB118 rapid charger | Faster than standard 20V | Acceptable |
| DCB115 / DCB113 | 1.25A → ~9–10 hrs | Overnight only |
| Pre-2017 chargers | Not FLEXVOLT certified | Avoid |
We don't carry the DCB1112 directly — check our DeWalt collection for current inventory.
DeWalt 20V vs. 60V FLEXVOLT: What Does the Ah Split Actually Mean?
The cells are the same either way. What changes is how they're wired. In 20V mode, the cells run in parallel: full Ah, lower voltage. In 60V mode, they wire in series: higher voltage, lower Ah. Total watt-hours are constant in both configurations. Runtime on any given tool depends on watt-hours consumed per task — not Ah in isolation.
Here's how the DCB6112 stacks against the smaller FLEXVOLT packs:
| Battery | Ah at 20V | Ah at 60V | Wh |
|---|---|---|---|
| DCB6112 | 12.0 Ah | 4 Ah | 240 Wh |
| DCB609 | 9.0 Ah | 3 Ah | 180 Wh |
| DCB606 | 6.0 Ah | 2 Ah | 120 Wh |
For context on where the PowerStack/XR line sits relative to FLEXVOLT, see PowerStack and FLEXVOLT compatibility.
How Far Does the DCB6112's 240Wh Go on Accessories?
A 240Wh nominal pack is a real on-site power source — stored energy you can route through an inverter or USB charger between tool uses, not just a number on a spec sheet.
150W inverter runtime: At 150W draw and roughly 90% inverter efficiency, the DCB6112 delivers approximately 1.5–1.8 hours of runtime. That covers device charging, LED job lights, or a small fan through a lunch break. *Calculated estimate — not a DeWalt spec; treat as approximate.*
USB-C charger at 65W: Running a 65W fast charger off the same pack delivers several hours of continuous device charging. More than enough to keep a phone and tablet topped through a full day.
For the full runtime math — including how Ah, Wh, and load wattage interact — see how to calculate power tool battery runtime.
Both of these pair directly with the DCB6112:
- 150W power inverter with 120V outlet and USB ports — DeWalt 20V MAX compatible
- USB-C fast charger with LED screen — up to 65W, compatible with all DeWalt 20V MAX batteries
Is the DCB6112 Worth It?
Buy it if:
- 60V MAX tools are in regular rotation — chainsaws, miter saws, table saws — and you're losing time on battery swaps
- You run sustained, high-draw jobs where tabless cells' thermal advantage is actually in play
- You want the capacity headroom to share the pack with an inverter or USB charger without running it dry
Skip it if:
- You're 20V MAX only and already run two 5Ah or 6Ah packs — the runtime gain doesn't justify the weight or price premium on a drill
- Your site has shore power and battery management isn't a bottleneck
Frequently Asked Questions
Is the DeWalt DCB6112 compatible with 20V MAX tools? Yes. FLEXVOLT batteries fit all DeWalt 20V MAX tools and run at the full 12Ah rating. No adapter or converter needed.
What charger do I need for the DCB6112? Any DeWalt 20V MAX or FLEXVOLT charger physically fits. The DCB1112 FLEXVOLT charger is the right call for a 12Ah pack — it charges significantly faster. The DCB115 works, but plan on approximately 9–10 hours to fully charge.
How long does it take to charge the DeWalt DCB6112? With the DCB1112 FLEXVOLT charger, the DCB6112 charges in approximately 1.5 hours. With a standard DCB115 (1.25A output), the theoretical charge time is 12Ah ÷ 1.25A ≈ 9.6 hours — treat that as a floor under ideal conditions.
What does "tabless" mean on a DeWalt battery? Standard lithium-ion cells use a small metal tab to connect the electrode roll to the battery terminal. That tab creates a resistance concentration point under high current draw. Tabless cells bond the full electrode edge to the terminal instead, distributing current across the whole surface. The result: less heat buildup under heavy load and faster charge throughput on a matched charger.
How many watt-hours is the DCB6112? DeWalt lists the tested watt-hour figure on the DCB6112 product page. Nominal calculation: 20V × 12Ah = 240Wh — confirm the spec-sheet value there, as the tested figure may differ slightly from nominal.
Does the DCB6112 fit a DeWalt FLEXVOLT 60V miter saw? Yes. All DeWalt 60V MAX tools accept FLEXVOLT batteries, and the DCB6112 is confirmed 60V MAX compatible — it fits any 60V MAX slot with no adapter needed.
How much does the DCB6112 weigh? The DCB6112 is a substantial pack — noticeably heavier than smaller FLEXVOLT options. Factor that in on drills and any overhead work where a lighter pack is less fatiguing.
The DCB6112 earns its price and weight if 60V MAX tools are pulling real duty cycles. The tabless cells and 240Wh nominal capacity give you the thermal headroom and runtime that a full workday on heavy cordless tools actually needs. If you want to put that capacity to work beyond the tools — keeping devices and job lights running — pair it with an inverter or USB charger and the energy is there. See the full DeWalt accessory lineup at our DeWalt collection.
